美國AII 長壽命電化學氧氣傳感器 O2傳感器 - XLT-11-75-KE25F3

Mouse over image to zoom

0-100%的量程
具有卓越的準確性和穩定性

產品型號：: XLT-11-75-KE25F3

訂貨數量：

詢價 加入詢價籃

產品介紹

美國AII 長壽命電化學氧氣傳感器 O2傳感器 XLT-11-75-KE25F3應用：

0-100%的量程，應用與麻醉機 ，氧氣分析儀，呼吸機等

美國AII 長壽命電化學氧氣傳感器 O2傳感器 XLT-11-75-KE25F3：

更換傳感器用于:KE-25F3

美國AII 長壽命電化學氧氣傳感器 O2傳感器 XLT-11-75-KE25F3 參數：

測量范圍	0-100% O2
精度	+ 5%
信號輸出	10 - 15.5 mV
全量程	+ 1%
響應時間T90	13s
漂移%	< 1%
線性度	+ 1%
溫度系數	補償
工作溫度	0 to 40°C
存儲溫度	5 to 25°C
推薦儲存	6個月
操作壓力	Constant 5-30 PSIG
濕度不凝結（預期壽命）	10-99%RH
預期壽命	36個月
流量	1-10 LPM
質保期	12個月

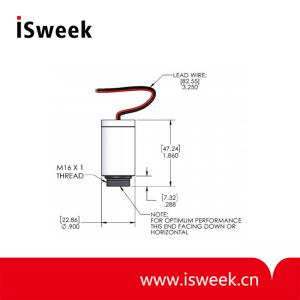

電氣連接器	3.250" Wires
包裝	Polyetylene bag in 3" x 3" x 1.5" paper box

(1) In air @ 25° C and 1 atm. Expected life varies inversely with changes in O2 concentration, temperature, pressure.

(2) Under constant conditions. Calibrate as near sample conditions as possible. Calibrate with 95-100% oxygen for measurements > 40% oxygen.

(3) Once the signal output stabilizes following a step change in temperature.

(4) Recommended 5-35° C. Sensors may be stored at -10 to 55° C on an intermittent basis only.

(5) Ex-factory unless agreed to in writing. Under normal application conditions sensor is warranted to be free of defects in material and workmanship for the period specified above proved the sensor is properly installed and operated. Analytical Industries Inc. shall not be liable for buyer's negligence,

misapplication, alteration or abuse. The sole remedy for a sensor determined to be defective by Analytical Industries Inc. is limited to replacing the defective sensor.
